Additional Info

• Цена 227197
• Characteristic

  Power supply, V/Hz	380/50
  Electricity consumption, kW/h	0.8
  Pneumatic supply**, atm./l.min.	missing
  Length / Width / Height (no more), mm	1200/1300/1400
  Weight (no more), kg	190
  Capacity volume, l	180 (280)
  Volume of tank filling, l	100 (200)
  Productivity*, kg/hour	6000

  * Productivity depends on properties and type of products to be mixed.

  Documentation

  • Frying Equipment Operation. F.A.Q. (Frequently asked questions)
• Job description

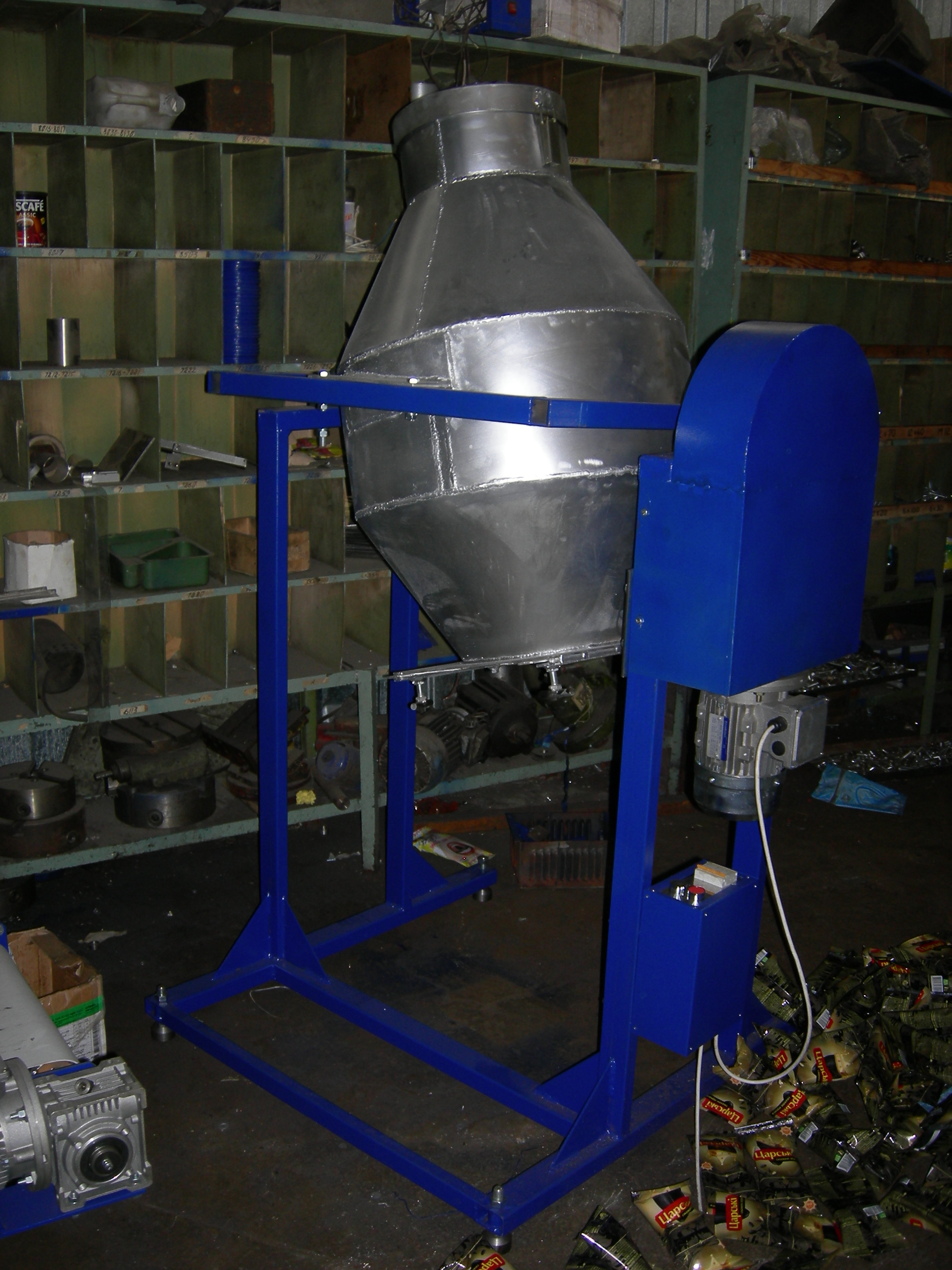

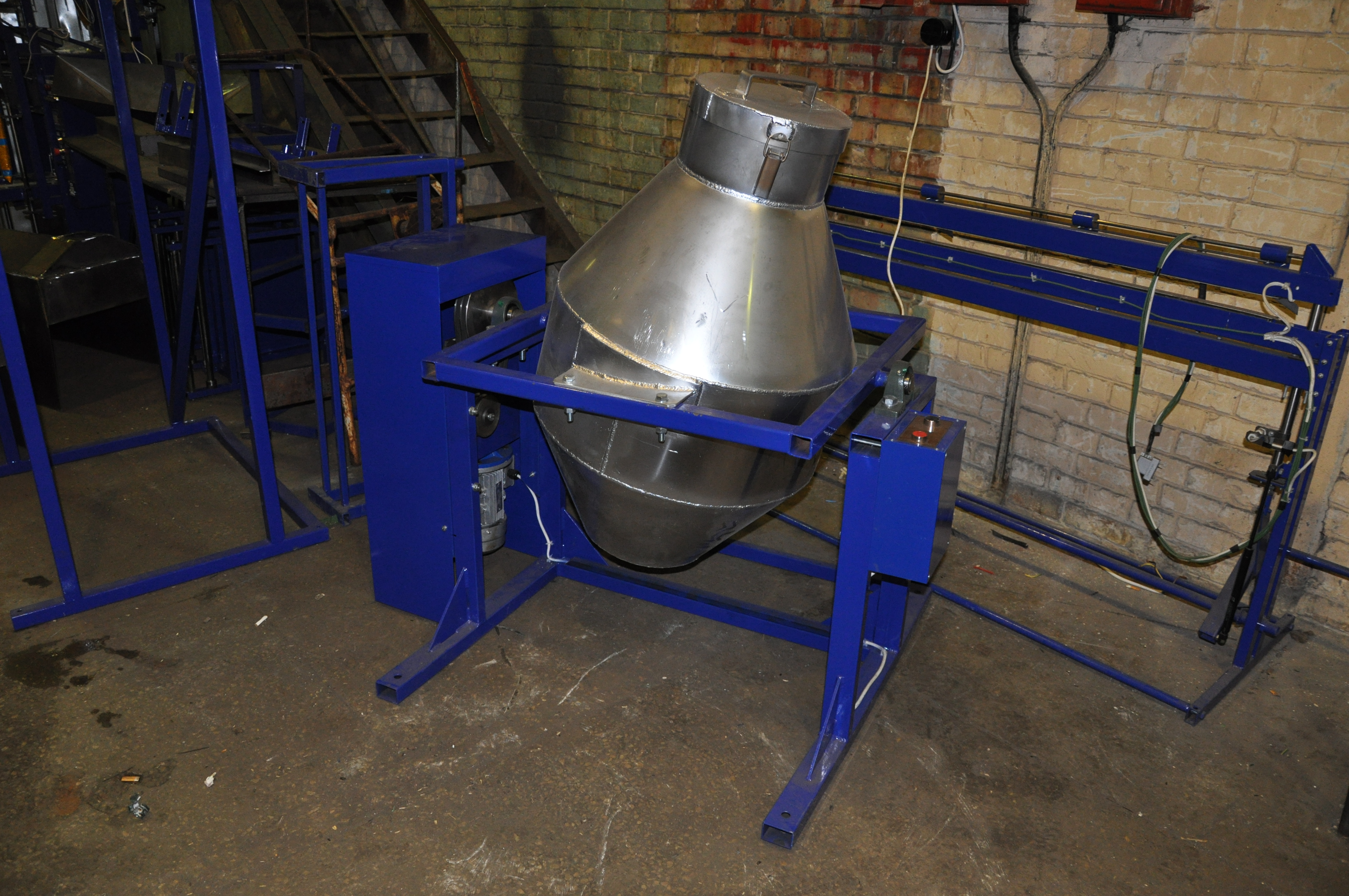

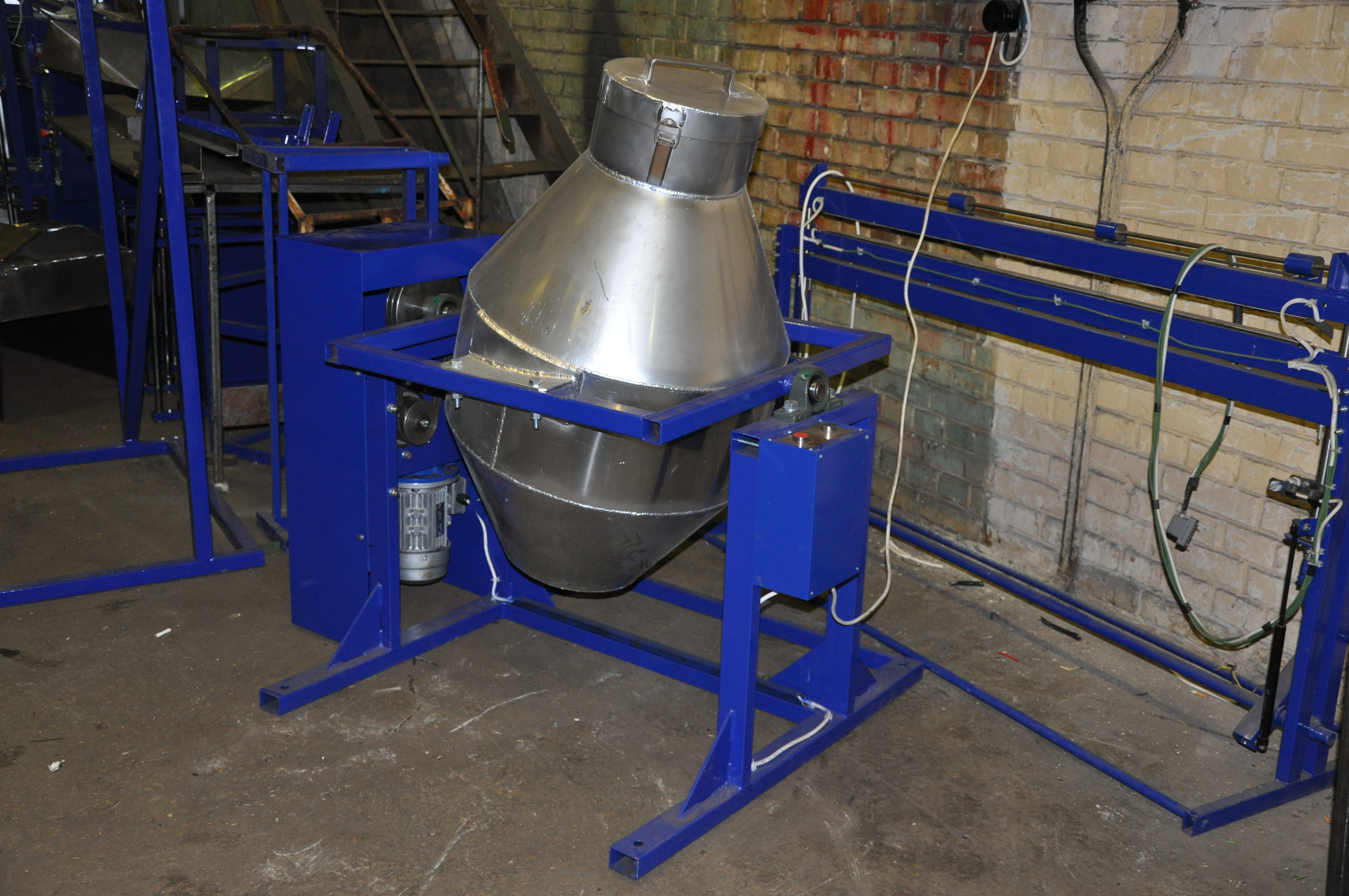

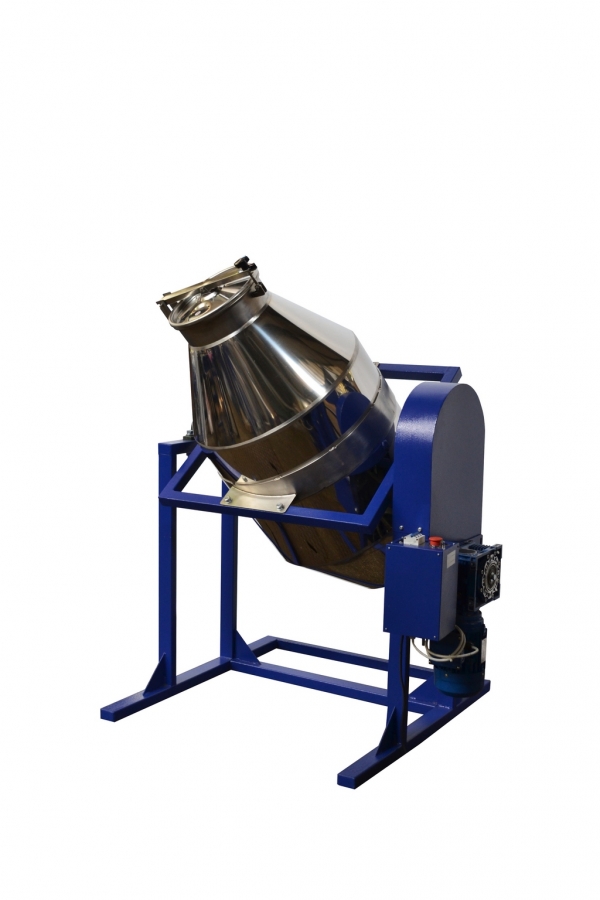

  The prepared (cleaned and washed) raw material is poured into a container (barrel) through the neck, after which a salt solution of the required consistency is poured into the container (selected for each product individually). Next, the neck is closed with the help of a cover and a locking device. The lid has a rubber seal and hermetically closes the container, eliminating leakage during the operation of the mixer.

  When you press the "Start" button, the electric drive starts rotating the container (barrel) in the vertical plane. The mixer works according to the "drunk barrel" principle, i.e. when the barrel rotates, due to the tilt of the vertical axis relative to the plane of rotation, the movement of raw materials takes place inside along a trajectory in the form of the number "8". Thus, maximum efficiency is achieved in mixing raw materials with salt solution - the mixture hits the walls of the barrel at different angles, crumbles, changes direction of movement and mixes with oncoming flows of the mixture.

  The operating time of the mixer is determined by the operator - to stop, press the "Stop" button. After that, it is necessary to open the lid of the container and, tilting the neck of the barrel, pour (pour out) its contents.

• Features

  The mixer is intended for mixing loose products both among themselves and with different solutions. In most cases, it is used to prepare such bulk products as seeds, nuts, peanuts, and pistachios for frying by mixing them with a water-salt solution. Mixing spices and food coloring components is also common. It can also be used for food products.

  The features of the model are the movement trajectory of the mixture inside the barrel, which is achieved using the calculated angle of attachment of the container to the rotation shaft. This allows you to get rid of paddles and paddles inside the container, thereby eliminating places for accumulation of product and dirt.

  This equipment is produced in one model SPB-1, with capacity modification (180 and 280 liters).

• Complete set

  Standard configuration

  • Container for mixing, with a tight lid;
  • Metal frame with adjustable supports;
  • Control unit (Start/Stop).



  Additional equipment

  • Storage hopper with electronic BU;
  • Frequency converter (to change the rotation speed);
  • Corrugation (air intake);
  • Movable supports (wheels).



  Equipment

  • Electric drives – STM (Italy);
  • BO - PackTech (Ukraine);
  • Frequency converters – INVT, HYUNDAI (Korea);
  • Nodes that come into contact with the product – steel 304.
• Opportunities 6000 kg/h
